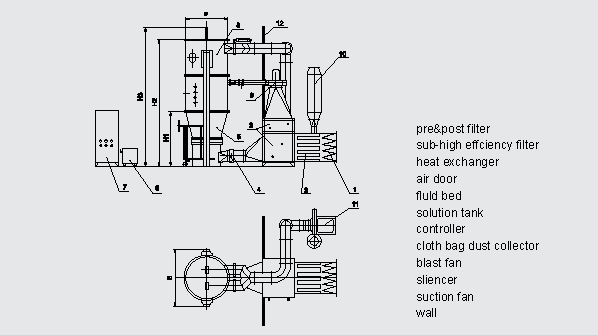

PGL-B Series Spray Drying Granulator
>> Example of model choice:
Suppose that are 120kg liquid extract I (include 30% solid) and 60kg seed II in one vessel,from I and II ,we can
get theoretical product amount M=mI+mII=120kg x 30%+60kg=96kg,working time T=120kg/30kg/h=4h,from the parameter table we can find
that the fluidization amount is inside the standard loading range. If we require two batches in one duty time, PGL-30B is OK.
